Live Bottom Trailers
Experience the unmatched benefits of the Trout River Live Bottom Trailer, where safety, reliability, and versatility meet . Its rounded tub design enhances stability by lowering the center of gravity, virtually eliminating rollover risks, and maximizing payload for safer, more efficient hauling.
Whether hauling grain, aggregate, potash, lime, asphalt, salt, topsoil, or more, the Trout River Live Bottom Trailer delivers on its promise—unloading anywhere, anytime, every time.
Industries
Unmatched
Benefits
Experience the unmatched benefits of the Trout River Live Bottom Trailer, where safety, reliability, and versatility meet. Its rounded tub design enhances stability by lowering the center of gravity, virtually eliminating rollover risks, and maximizing payload for safer, more efficient hauling.
The state-of-the-art conveyor system enables unloading in challenging scenarios, including under bridges or in tight spaces. Bolted-in chain crossbars facilitate easy replacement, minimizing downtime and ensuring cost-effective maintenance and the bolted-in clamp chassis simplifies maintenance tasks.
Whether hauling grain, aggregate, potash, lime, asphalt, salt, topsoil, or more, the Trout River Live Bottom Trailer delivers on its promise—unloading anywhere, anytime, every time.
Request A Brochure
S-Series:
Same Reliable PerformancE, New Sleek Design
Key features
- 39" wide 3/8" Multi-Purpose Belt
- Forward & Reverse control conveyor system with auto-belt
- 4" Pitch proprietary chain with removable crossbars
- Standard butterfly quick-connect hydraulic hookups
- Rounded tub design for a lower center of gravity and increased volume
- Automatic flip-up mud flaps
- LED lighting system
- Long-life urethane paint with rust-inhibiting primer
- Hardox 500 tuff side wall material
- 1" Hydraulic supply and return lines
- Chain oiler system
- Holland Mark V - 2-Speed landing gear
- Antilock Brake System
- Safety strobe lights at rear of trailer
- Safety reversing audible alarm
- Lift and steer axle configurations
Specifications
Model
- LV-28
- SC-28
- SC-31
- SC-37
- LV-38
- SC-39
- LV-42
- SC-42
- SC-45
- SC-48
- SC-50
Length
- 28'
- 28'
- 31'
- 37'
- 38'
- 39'
- 42'
- 42'
- 45'
- 48'
- 50'
Height
- 9'
- 10'
- 10'
- 10'
- 9'
- 10'
- 9'
- 10'
- 10'
- 10'
- 10'
Capacity
- 22.02
- 27.41
- 30.83
- 37.69
- 31.19
- 39.97
- 34.86
- 43.40
- 46.82
- 50.25
- 52.53

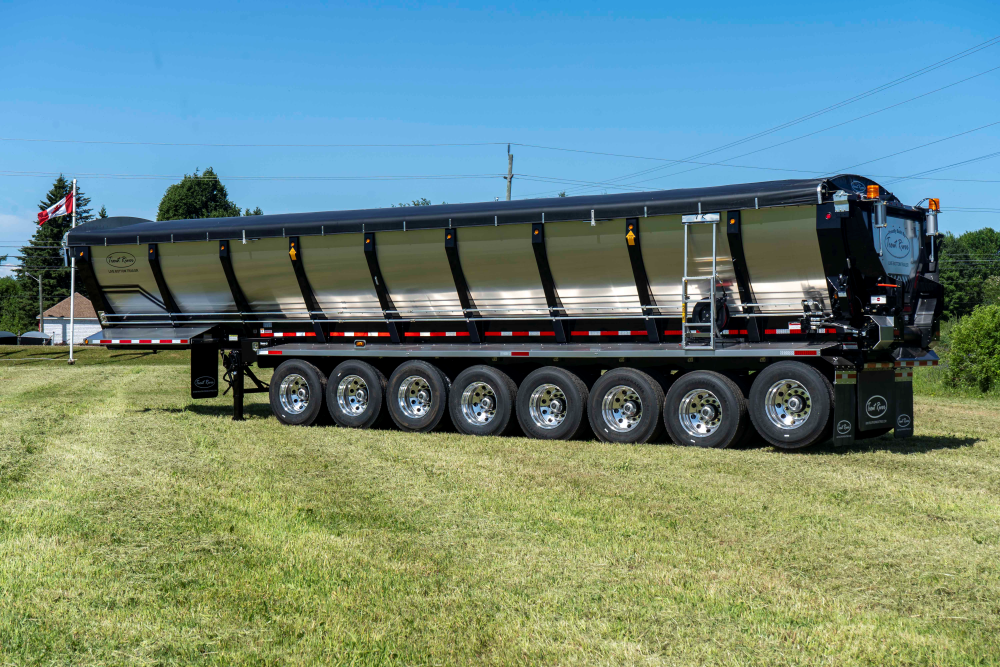

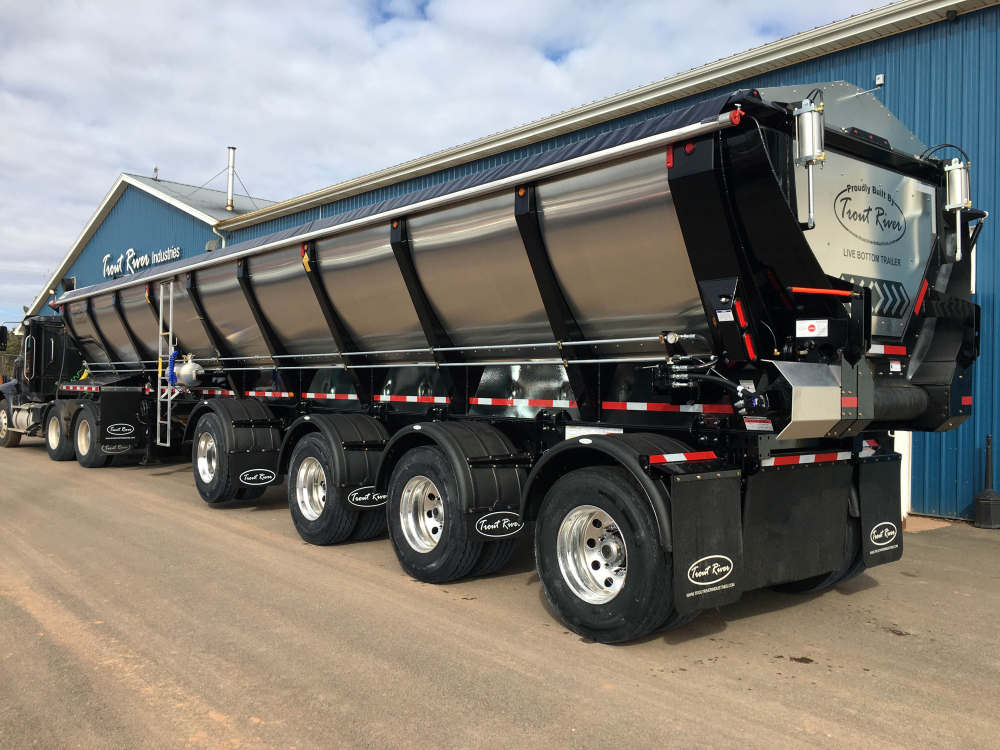

Live Bottom 8 Axle

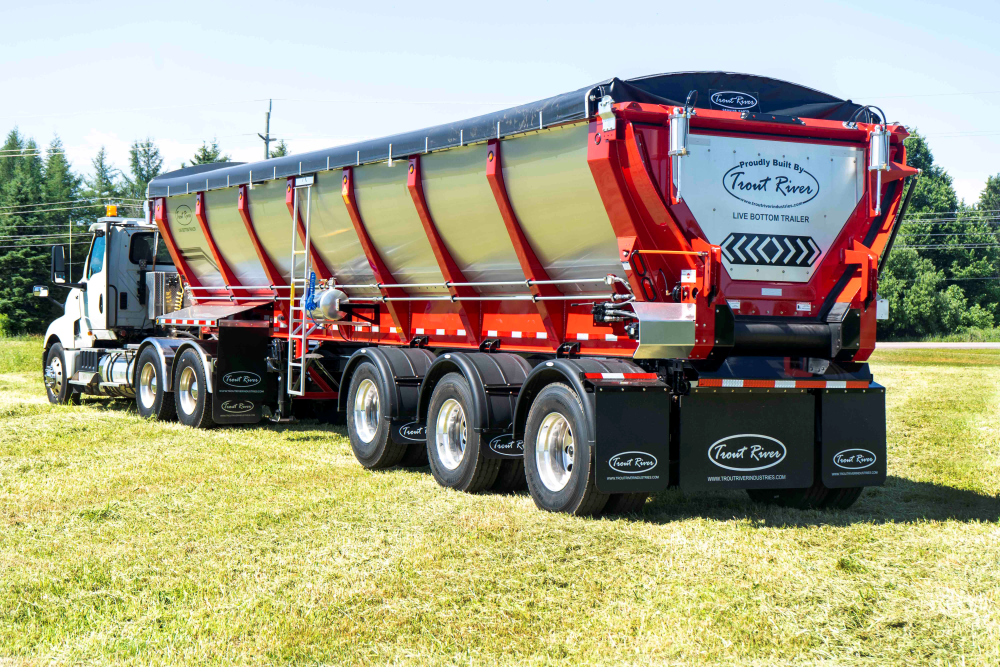

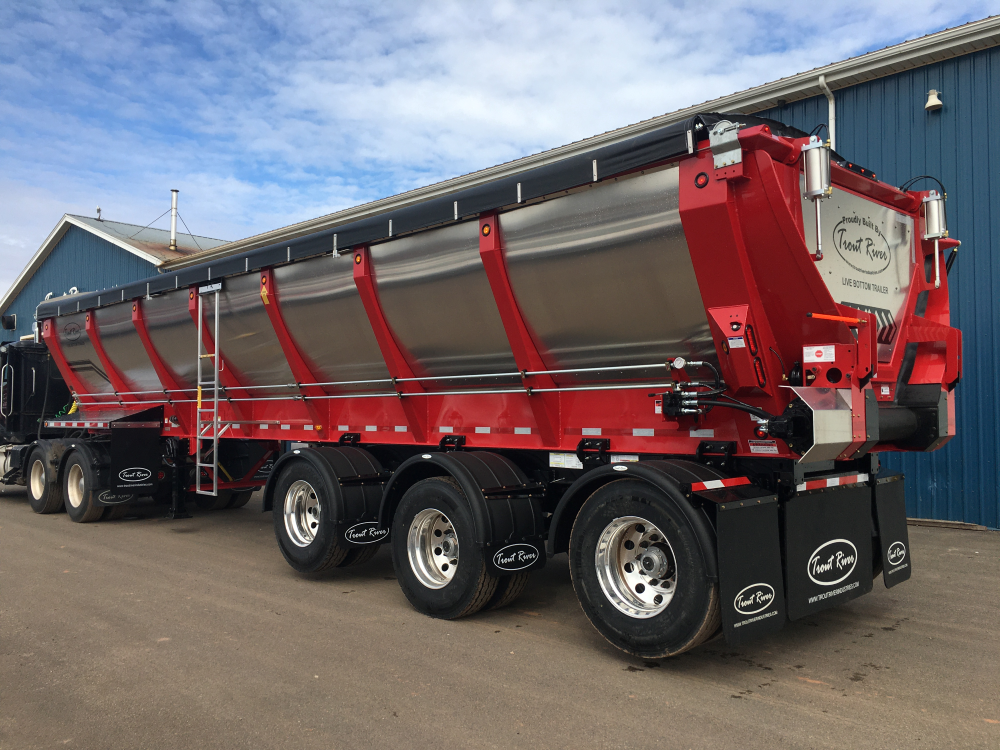

Live Bottom in Flame Red
Live Bottom
Live Bottom
Live Bottom

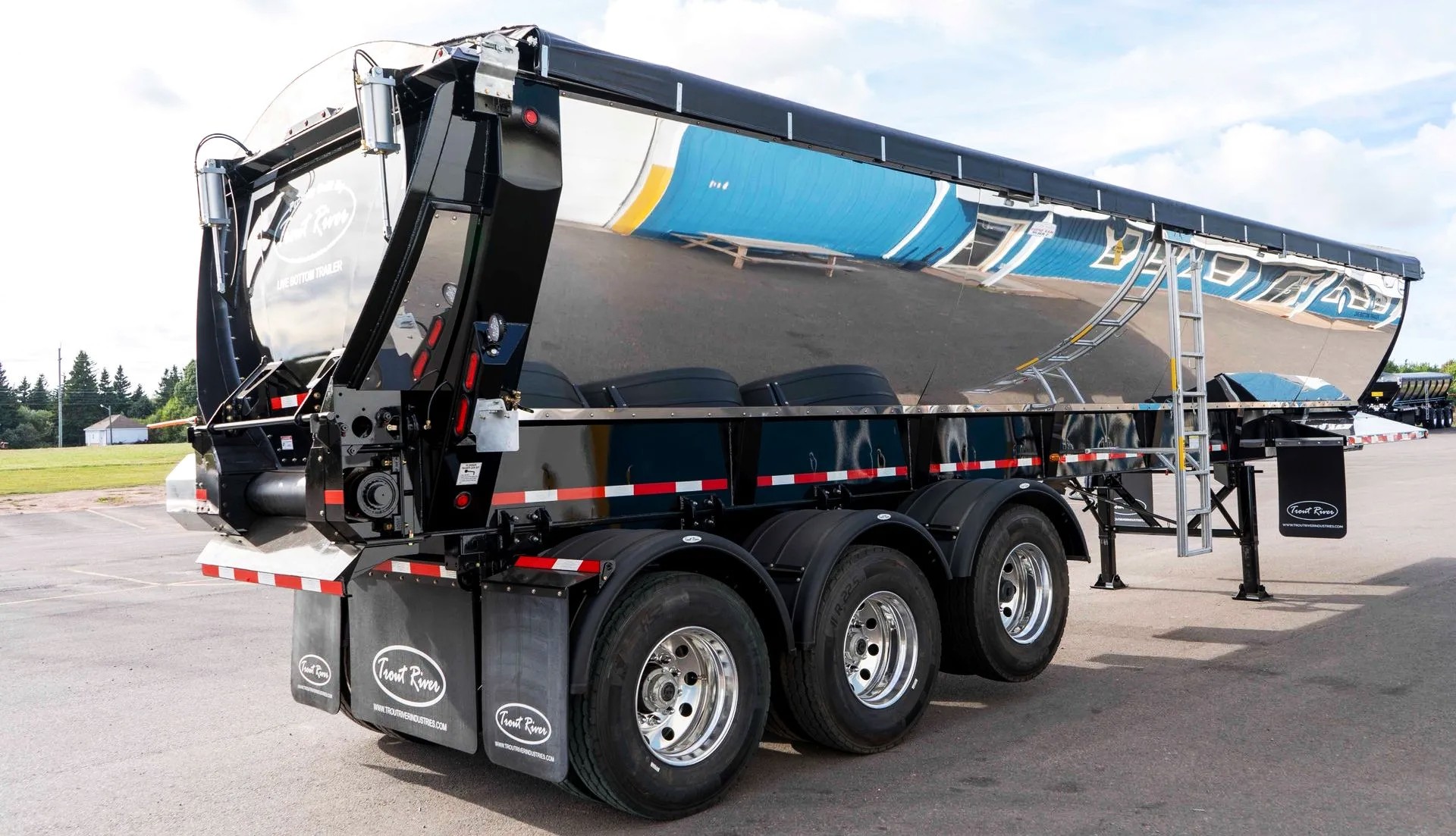

TRI S-Series
