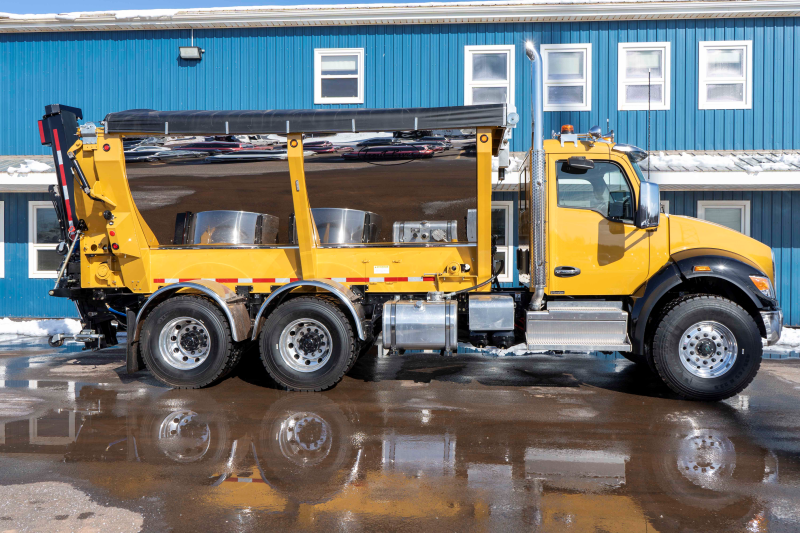

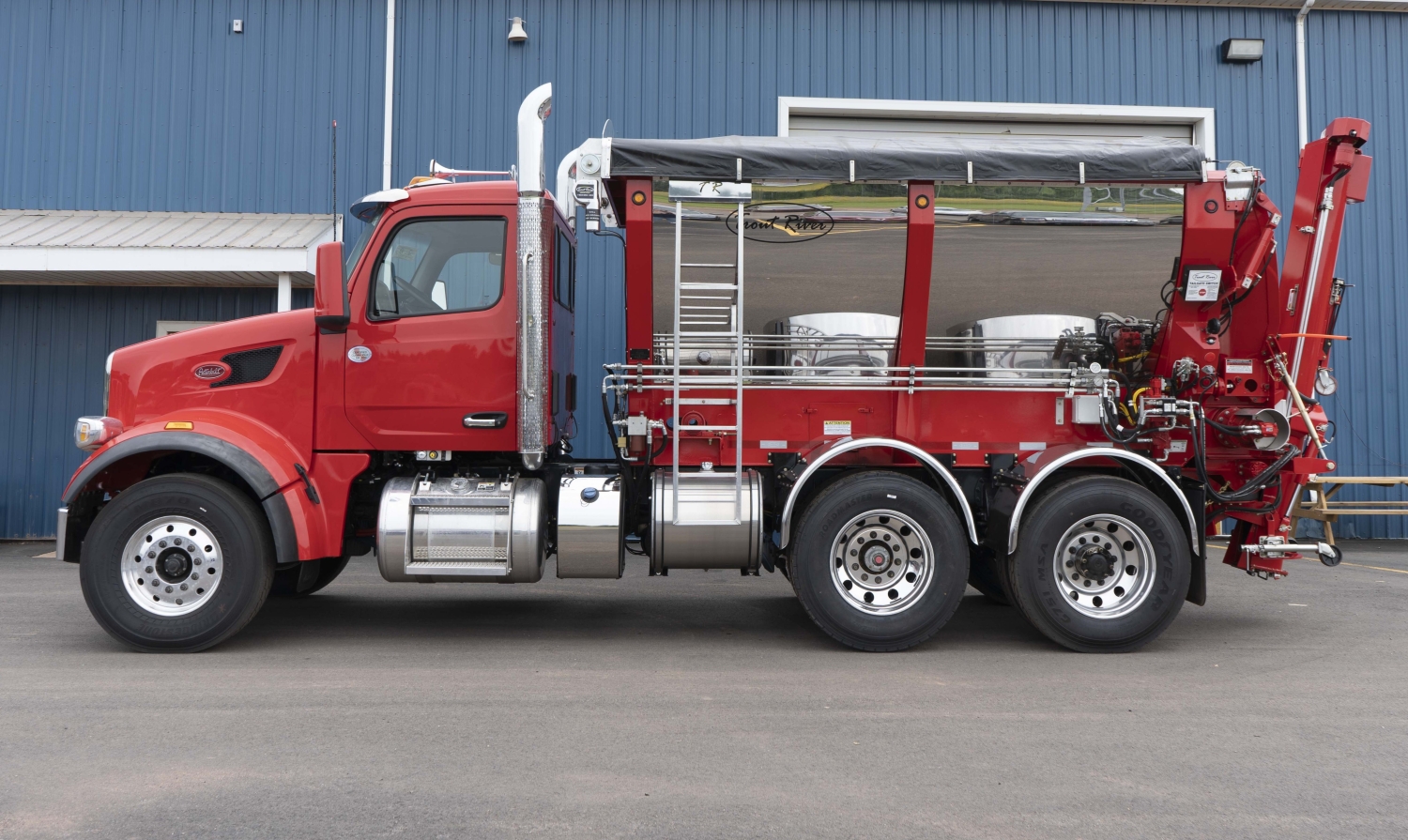

Truck Mounted Live Bottom
The Truck Mounted Live Bottom is a unit that offers the same versatility, functionality, and safety as the Trout River live bottom trailer.
This unit enables you to work in tight, confined spaces with no worries of overhead obstructions.
It is the small but mighty live bottom.
Industries
Request A Brochure
Key Features
- 39" wide 3/8" Multi-Purpose Belt
- Forward & Reverse control conveyor system with auto-belt
- 4" Pitch proprietary chain with removable crossbars
- Standard butterfly quick-connect hydraulic hookups
- Rounded tub design for a lower center of gravity and increased volume
- Automatic flip-up mud flaps
- LED lighting system
- Long-life urethane paint with rust-inhibiting primer
- Hardox 500 tuff side wall material
- 1" Hydraulic supply and return lines
- Chain oiler system
- Holland Mark V - 2-Speed landing gear
- Antilock Brake System
- Safety strobe lights at rear of trailer
- Safety reversing audible alarm
- Lift and steer axle configurations
Specifications
Model
- 15'X6' MPB
- 17'X6' MPB
- 18'X6' MPB
- 18'X7' MPB
- 19'X6' MPB
- 19'X7' MPB
- 20'X6' MPB
- 21'X6' MPB
- 22'X6' MPB
- 22'X7' MPB
- 24'X6' MPB
Length
- 15'
- 17'
- 18'
- 18'
- 19'
- 19'
- 20'
- 21'
- 22'
- 22'
- 24'
Height
- 72"
- 72"
- 72"
- 84"
- 72"
- 84"
- 72"
- 72"
- 72"
- 84"
- 72"
Capacity
- 15.76
- 17.91
- 18.99
- 23.98
- 20.06
- 25.33
- 21.14
- 22.21
- 23.29
- 29.4
- 25.44
Truck Mounted Live Bottom
Truck Mounted Live Bottom

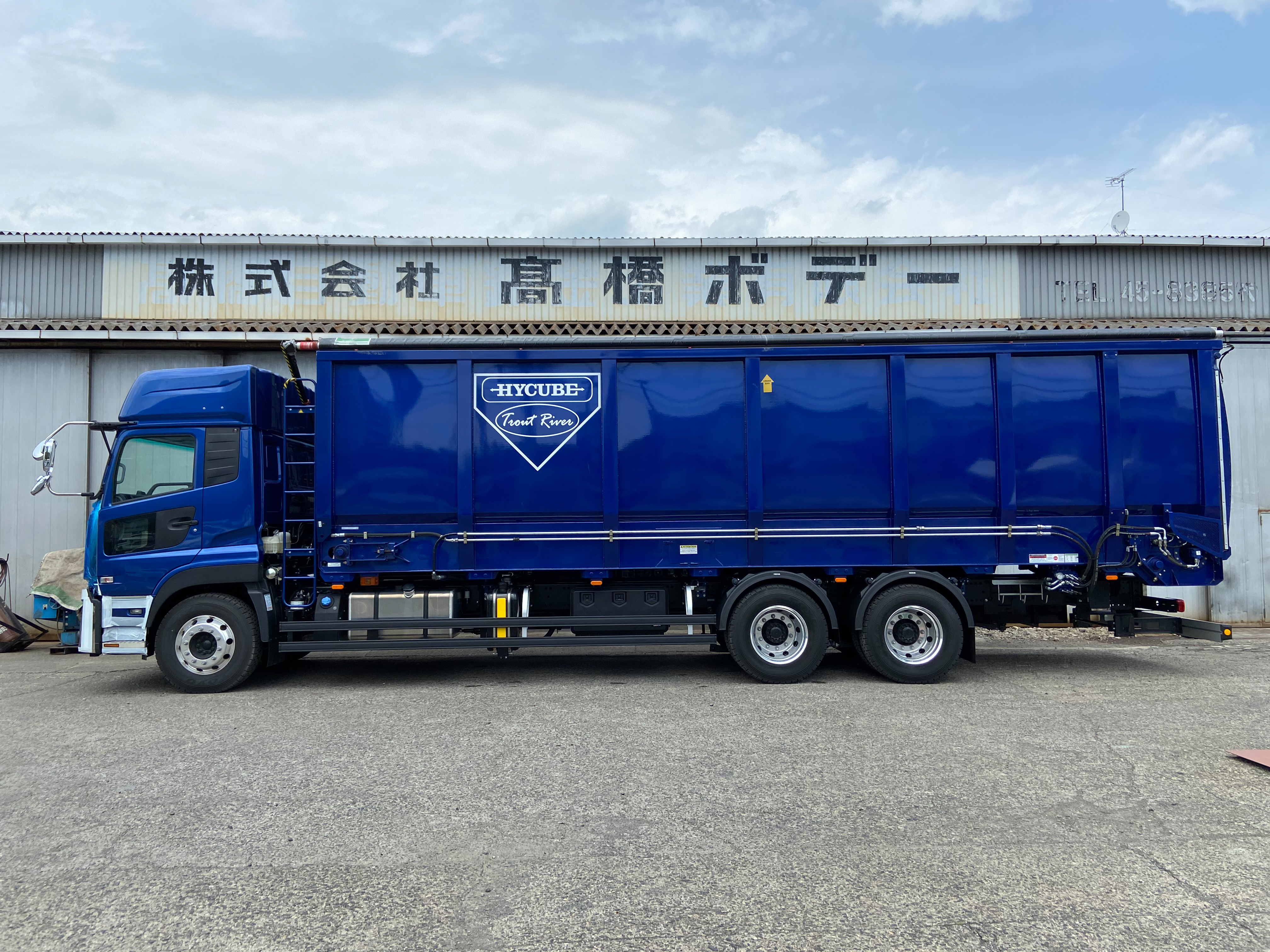

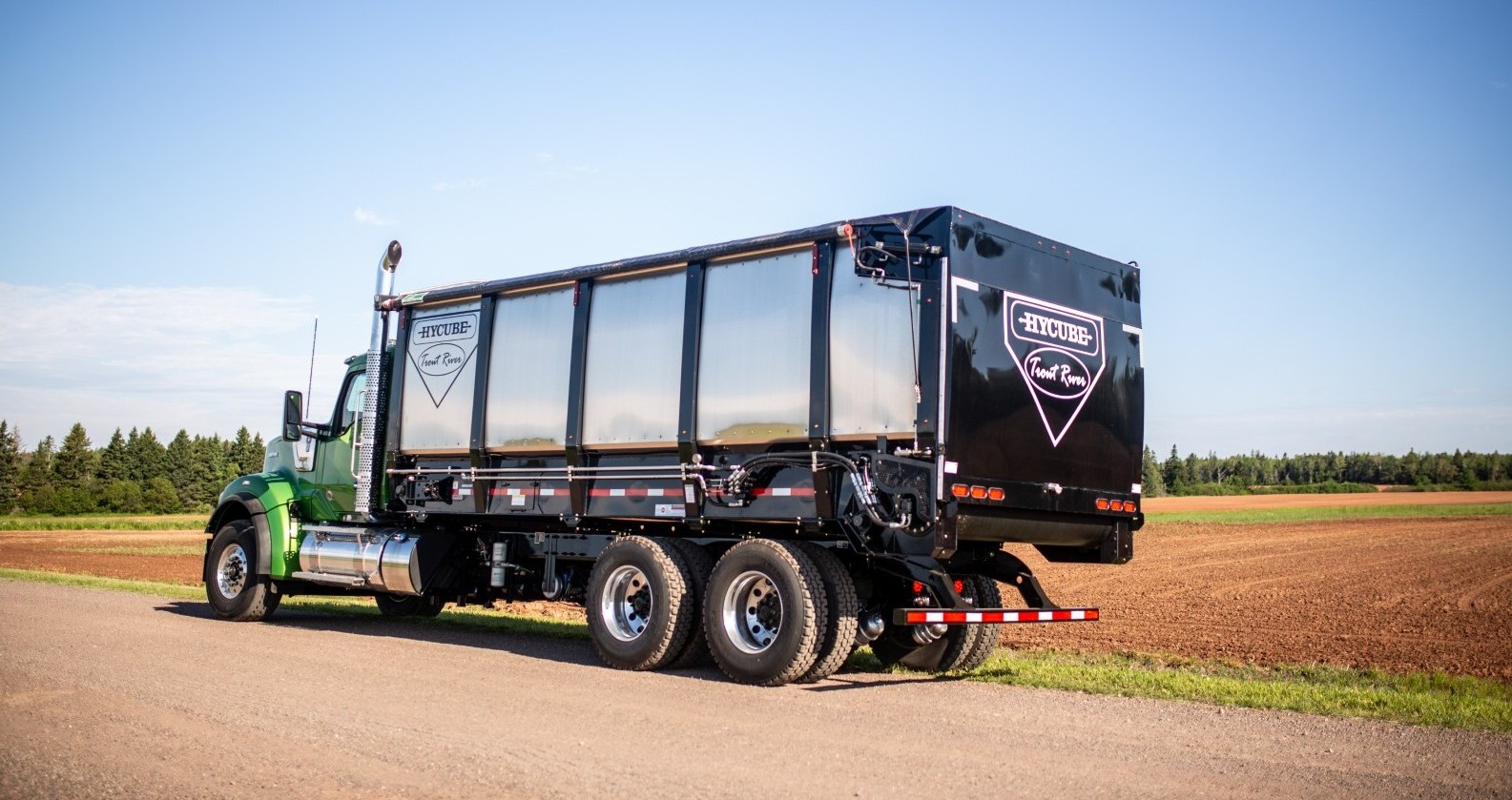

Truck Mounted Hycube Box

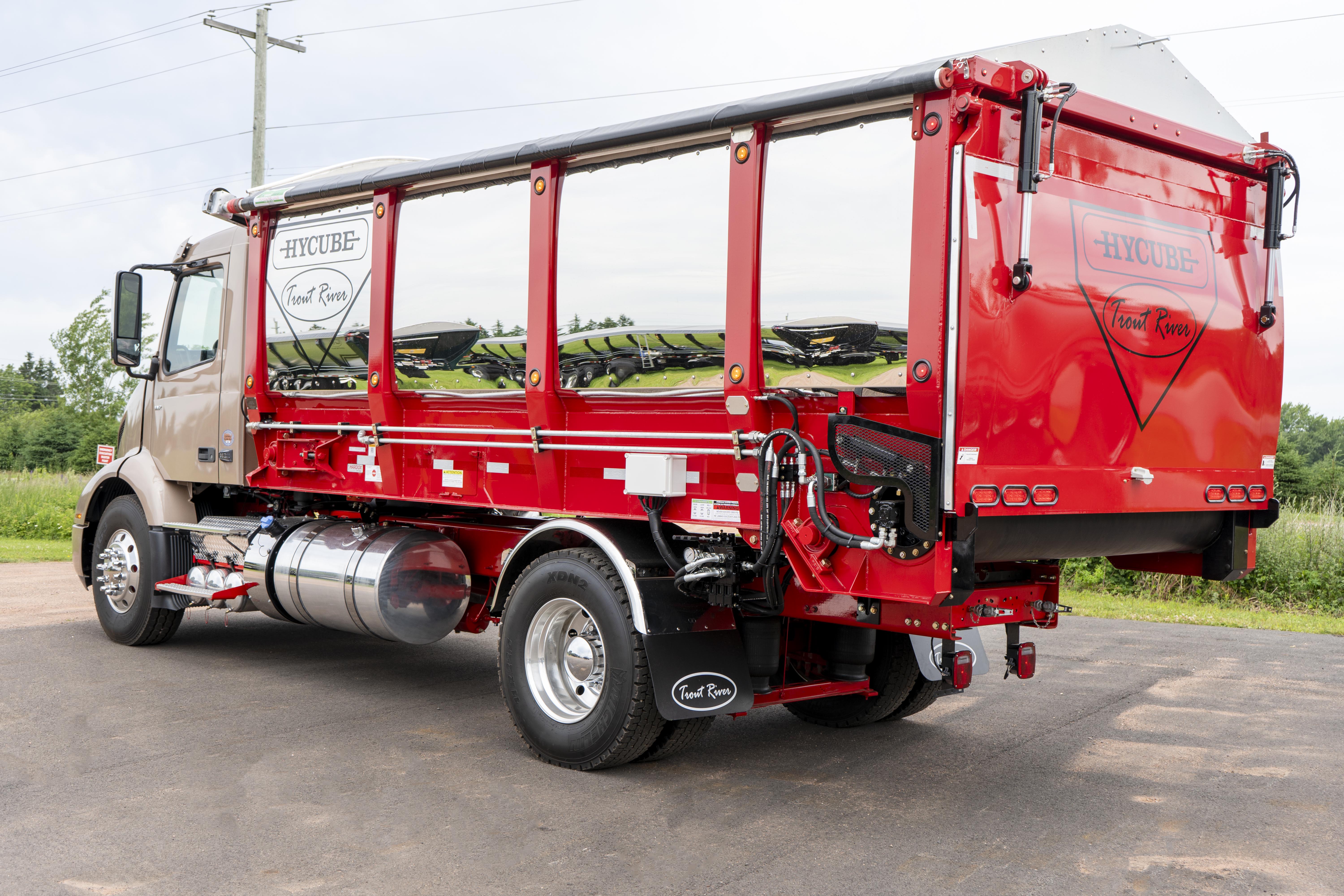

Truck Mounted Hycube
