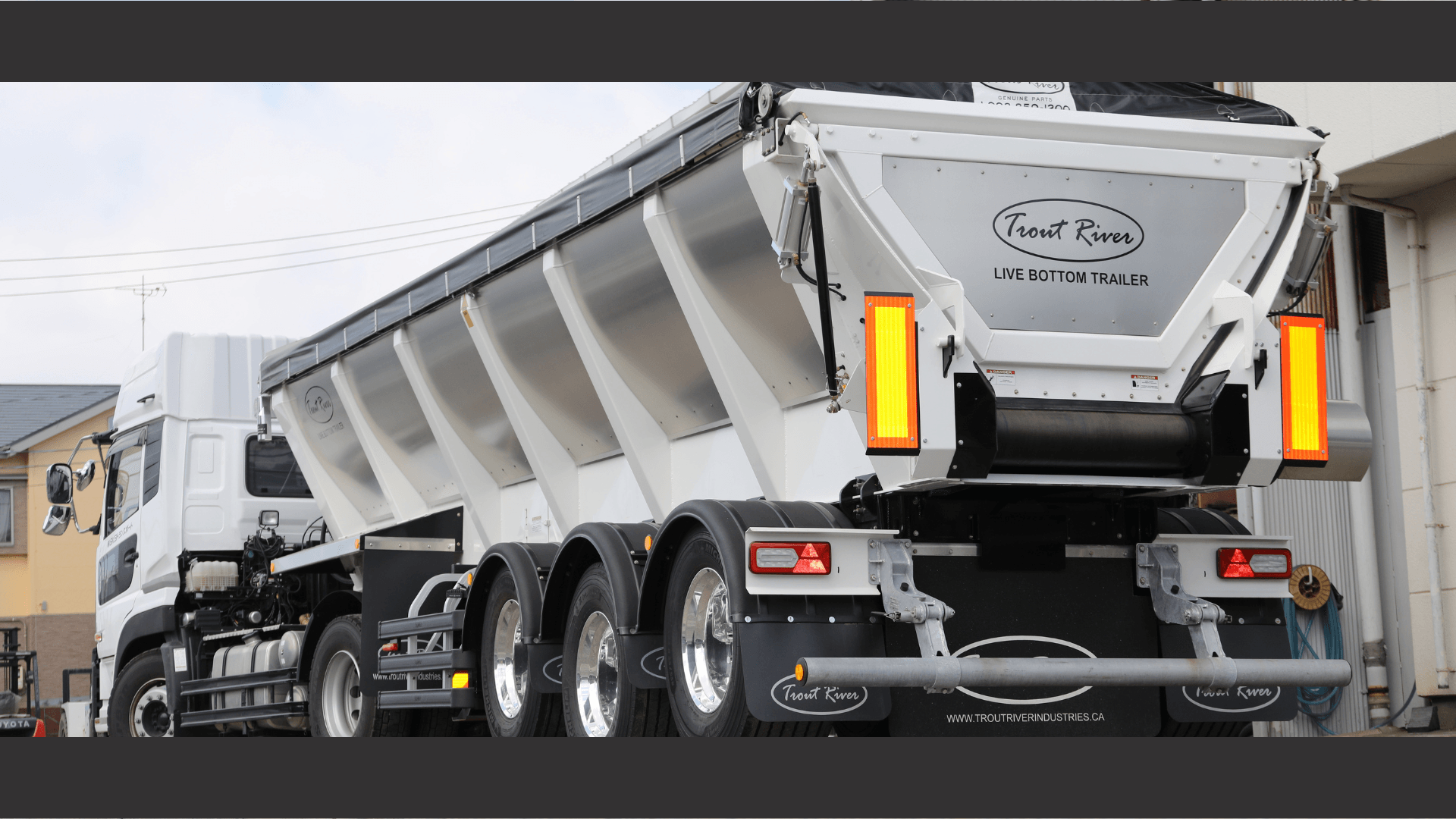

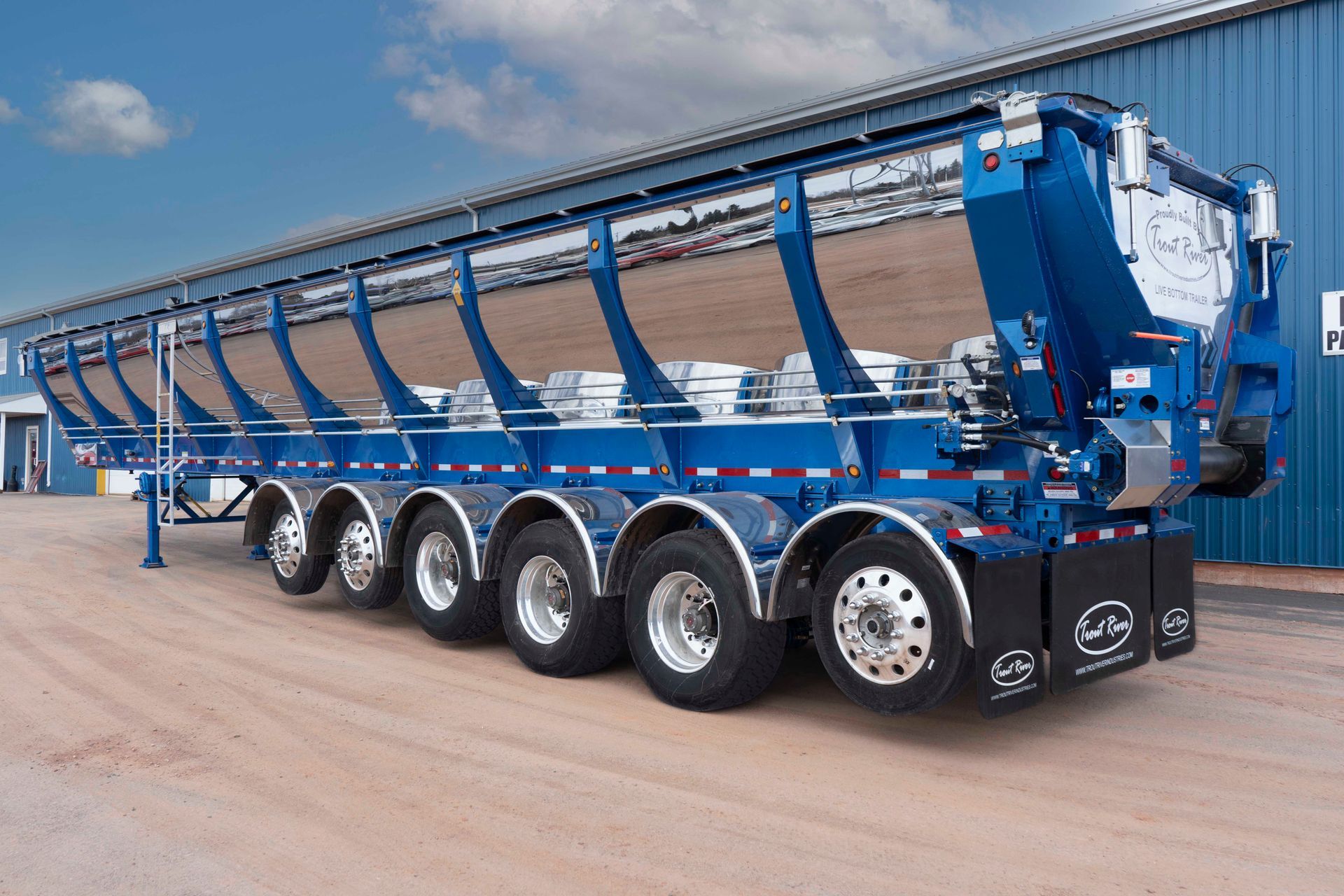

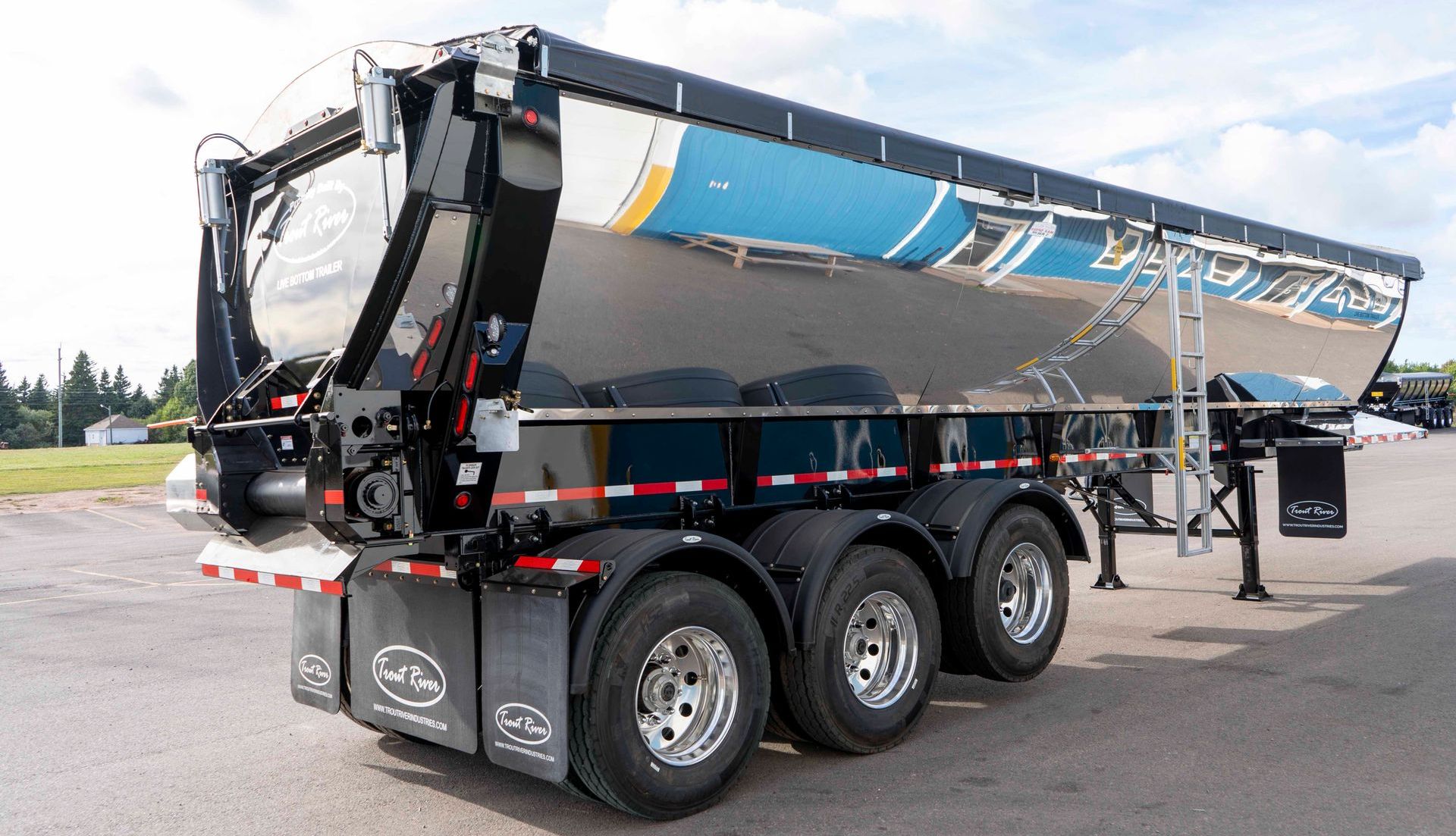

Experience the unmatched benefits of the Trout River Live Bottom Trailer, where safety, reliability, and versatility meet. Its rounded tub design enhances stability by lowering the center of gravity, virtually eliminating rollover risks, and maximizing payload for safer, more efficient hauling. The state-of-the-art conveyor system enables unloading in challenging scenarios, including under bridges or in tight spaces. Bolted-in chain crossbars facilitate easy replacement, minimizing downtime and ensuring cost-effective maintenance and the bolted-in clamp chassis simplifies maintenance tasks.
Whether hauling grain, aggregate, potash, lime, asphalt, salt, topsoil, or more, the Trout River Live Bottom Trailer delivers on its promise—unloading anywhere, anytime, every time.
Same Reliable Performance, New Sleek Design
Key features of the Live Bottom trailer
- 39'' wide 3/8'' Multi-Purpose Belt
- Hardox 500 tuff side wall material
- Forward & Reverse control conveyor system with auto-belt

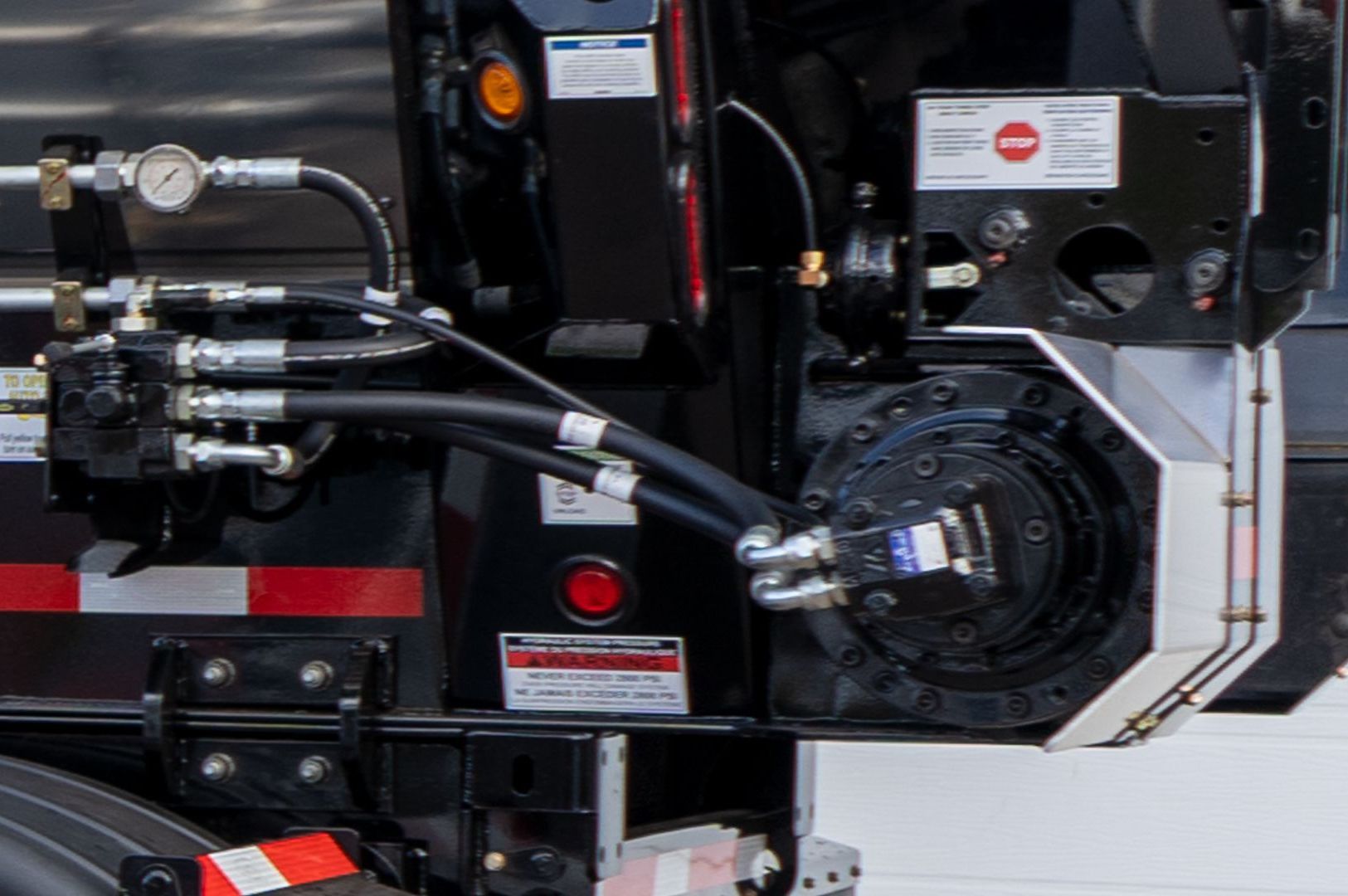

- 1'' Hydraulic supply and return lines
- 4'' Pitch proprietary chain with removable crossbars
- Chain oiler system
- Standard butterfly quick-connect hydraulic hookups
- Holland Mark V - 2-Speed landing gear
- Rounded tub design for a lower center of gravity and increased volume
- Antilock Brake System
- Automatic flip-up mud flaps
- Safety strobe lights at rear of trailer
- LED lighting system
- Safety reversing audible alarm
- Long-life urethane paint with rust-inhibiting primer
- Lift and steer axle configurations available
| Model | Length | Height | Capacity (YD3) |
|---|---|---|---|
| LV-28 | 28' | 9' | 22.02 |
| SC-28 | 28' | 10' | 27.41 |
| SC-31 | 31' | 10' | 30.83 |
| SC-37 | 37' | 10' | 37.69 |
| LV-38 | 38' | 9' | 31.19 |
| SC-39 | 39' | 10' | 39.97 |
| LV-42 | 42' | 9' | 34.86 |
| SC-42 | 42' | 10' | 43.40 |
| SC-45 | 45' | 10' | 46.82 |
| SC-48 | 48' | 10' | 50.25 |
| SC-50 | 50' | 10' | 52.53 |
